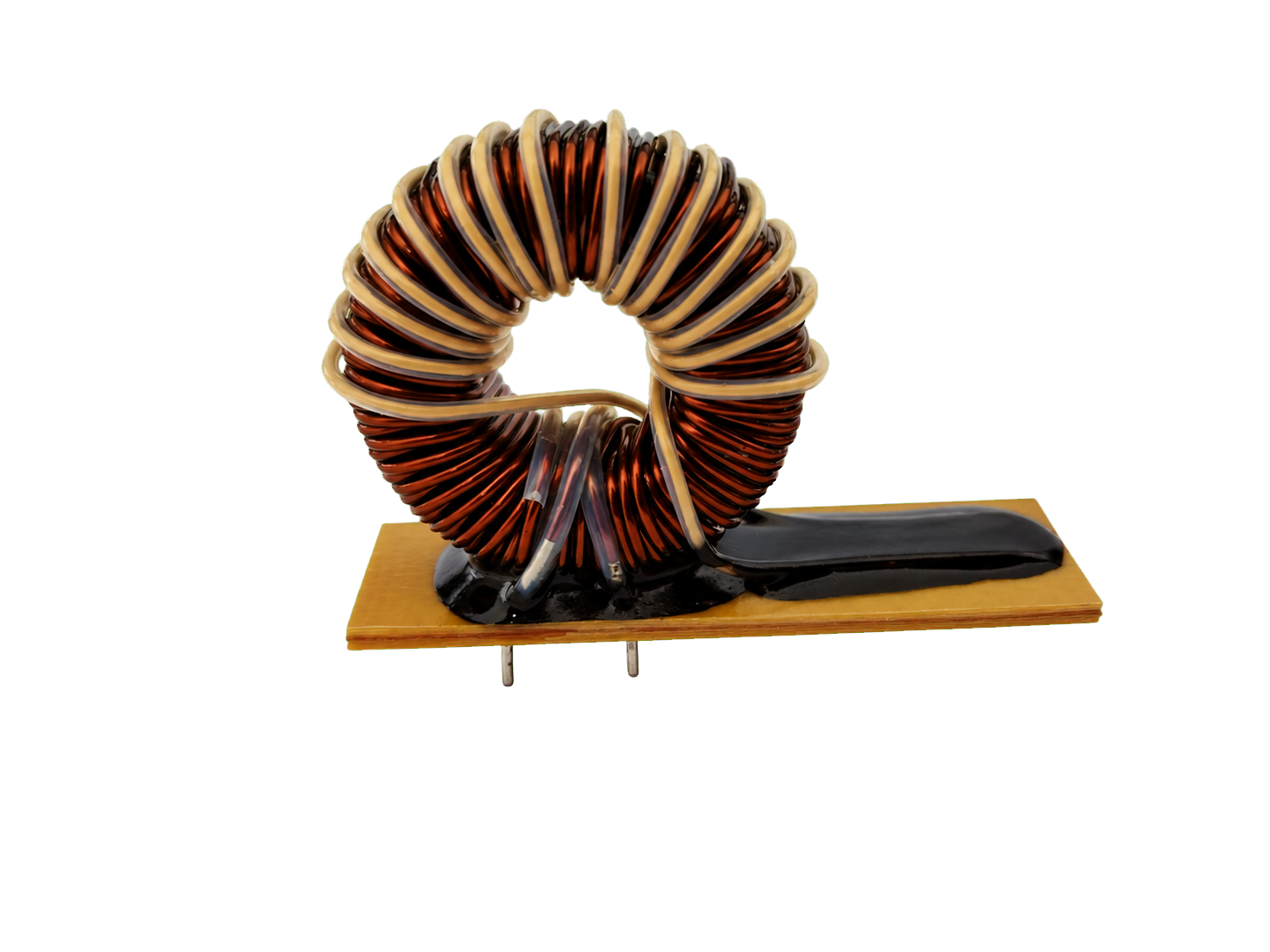

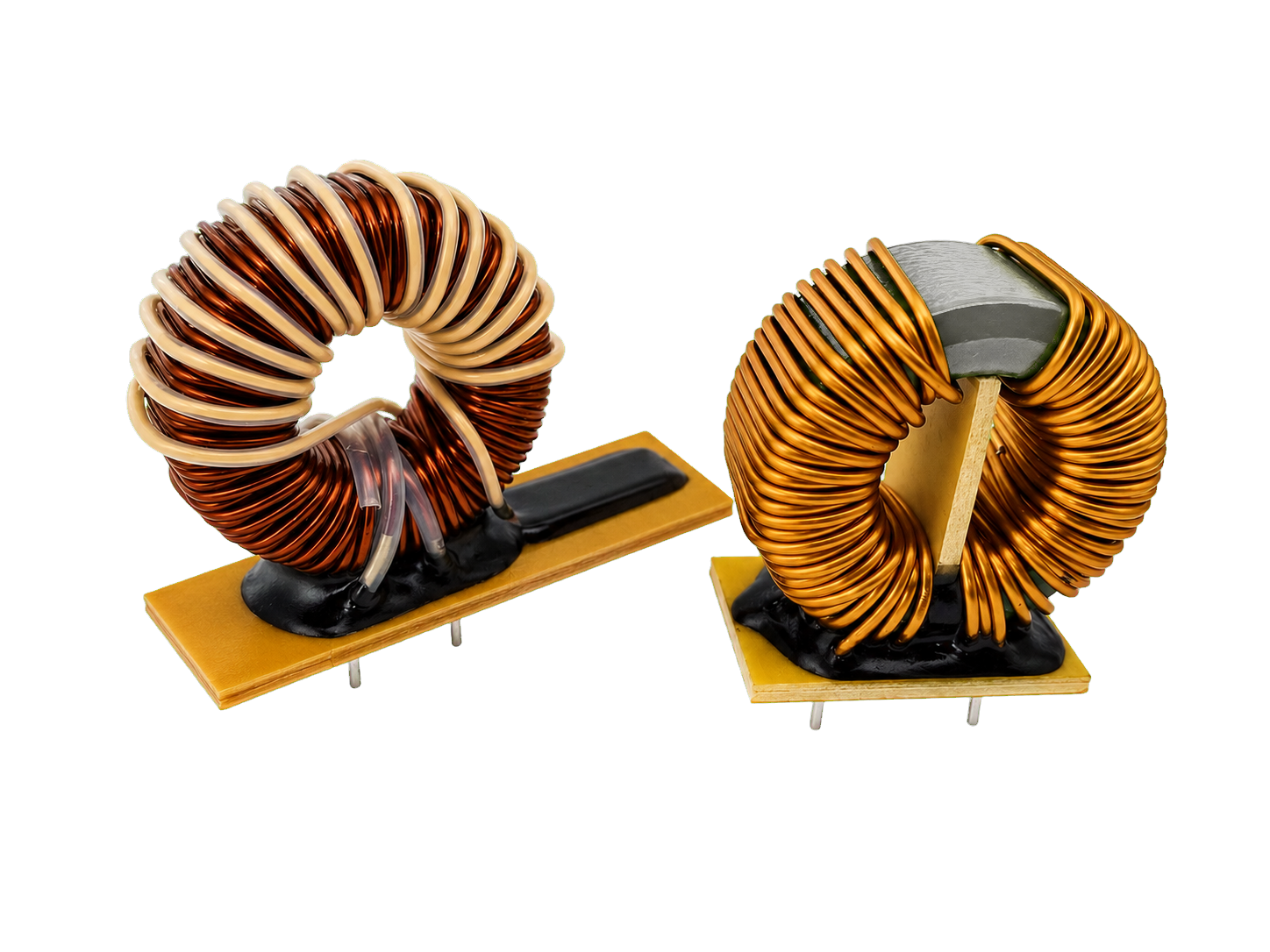

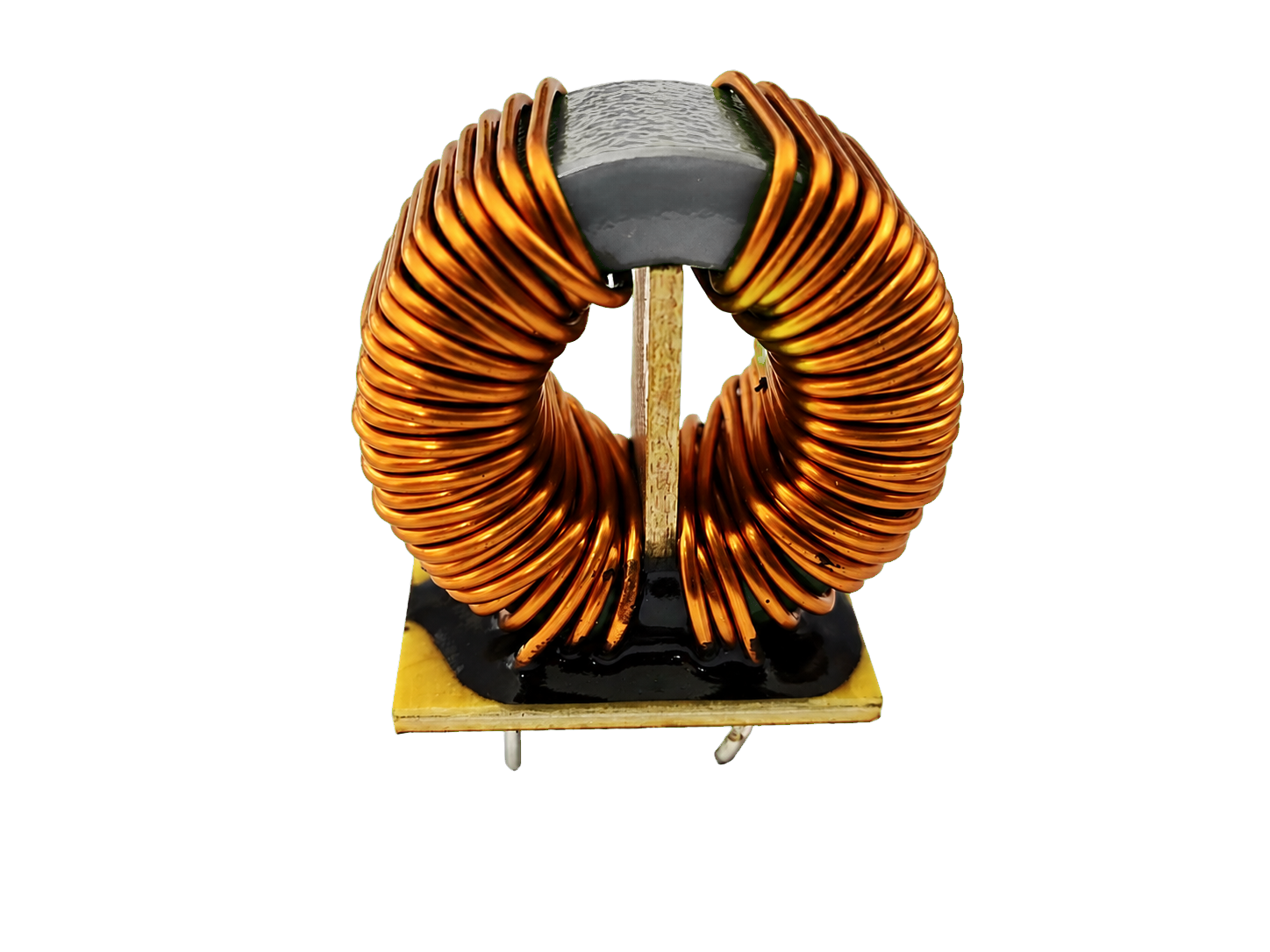

Toroidal Common-mode Choke
High-permeability toroidal core for common-mode interference and conducted-noise suppression
-
Product Overview
A high-permeability ferrite toroid and symmetrical bifilar winding suppress common-mode interference.
-
Technical Specifications
Item Specification Ambient Temperature -40 C to 55 C Insulation Resistance DC 500 V > 100 MOhm Dielectric Strength > 1000 V (1 min) Operating Frequency 50 Hz-1 MHz Thermal Class Class B (+130 C) Note Special specifications can be designed to customer requirements Applications
Chargers, LED drivers, adapters, TV power boards, industrial supplies, drives, surveillance equipment, and charging systems.
-
Applications
Chargers, LED drivers, adapters, TV power boards, industrial supplies, drives, surveillance equipment, and charging systems.
