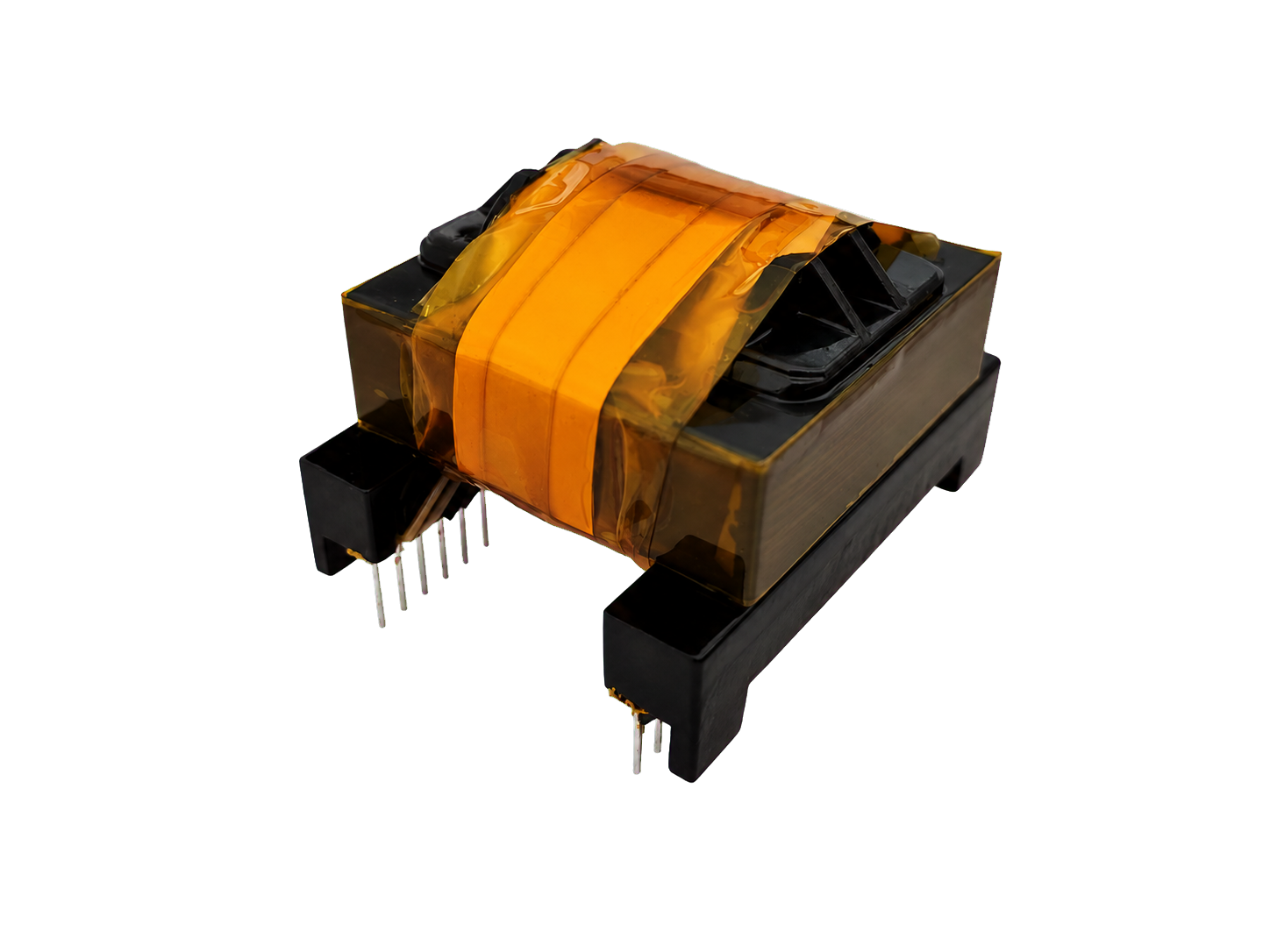

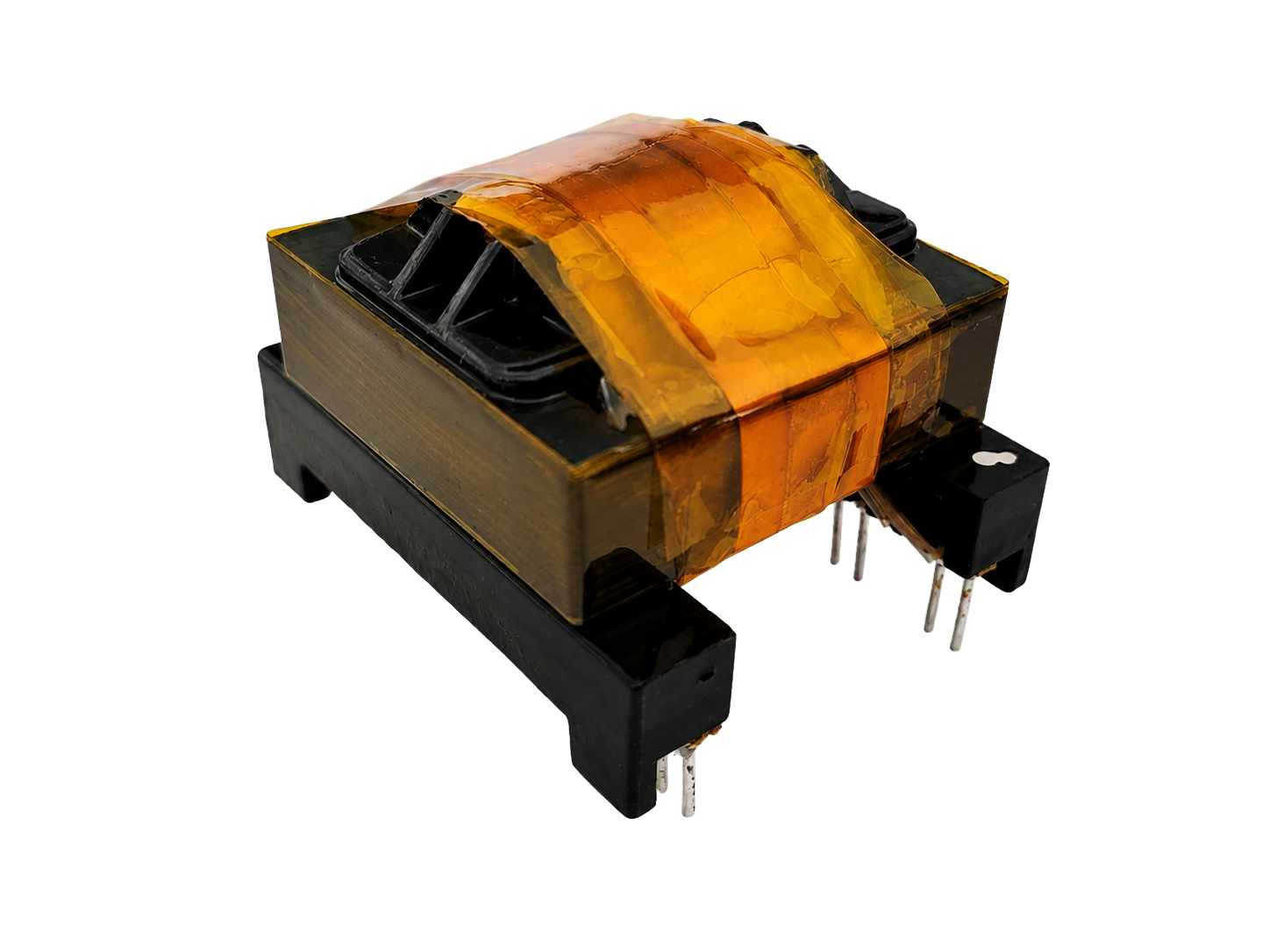

EE Vertical PI-film High-temperature Transformer
PI high-temperature insulation for high-temperature, high-voltage applications
-
Product Overview
Polyimide insulation, a flame-retardant vertical bobbin, and a high-permeability ferrite core support high-temperature use.
-
Technical Specifications
Item Specification Ambient Temperature -40 C to 55 C Insulation Resistance DC 500 V > 100 MOhm Dielectric Strength > 1000 V (1 min) Operating Frequency 20 Hz-200 kHz Thermal Class Class B (+130 C) Note Special specifications can be designed to customer requirements Applications
Industrial power supplies, fast chargers, medical equipment, and high-power LED drivers.
-
Applications
Industrial power supplies, fast chargers, medical equipment, and high-power LED drivers.
