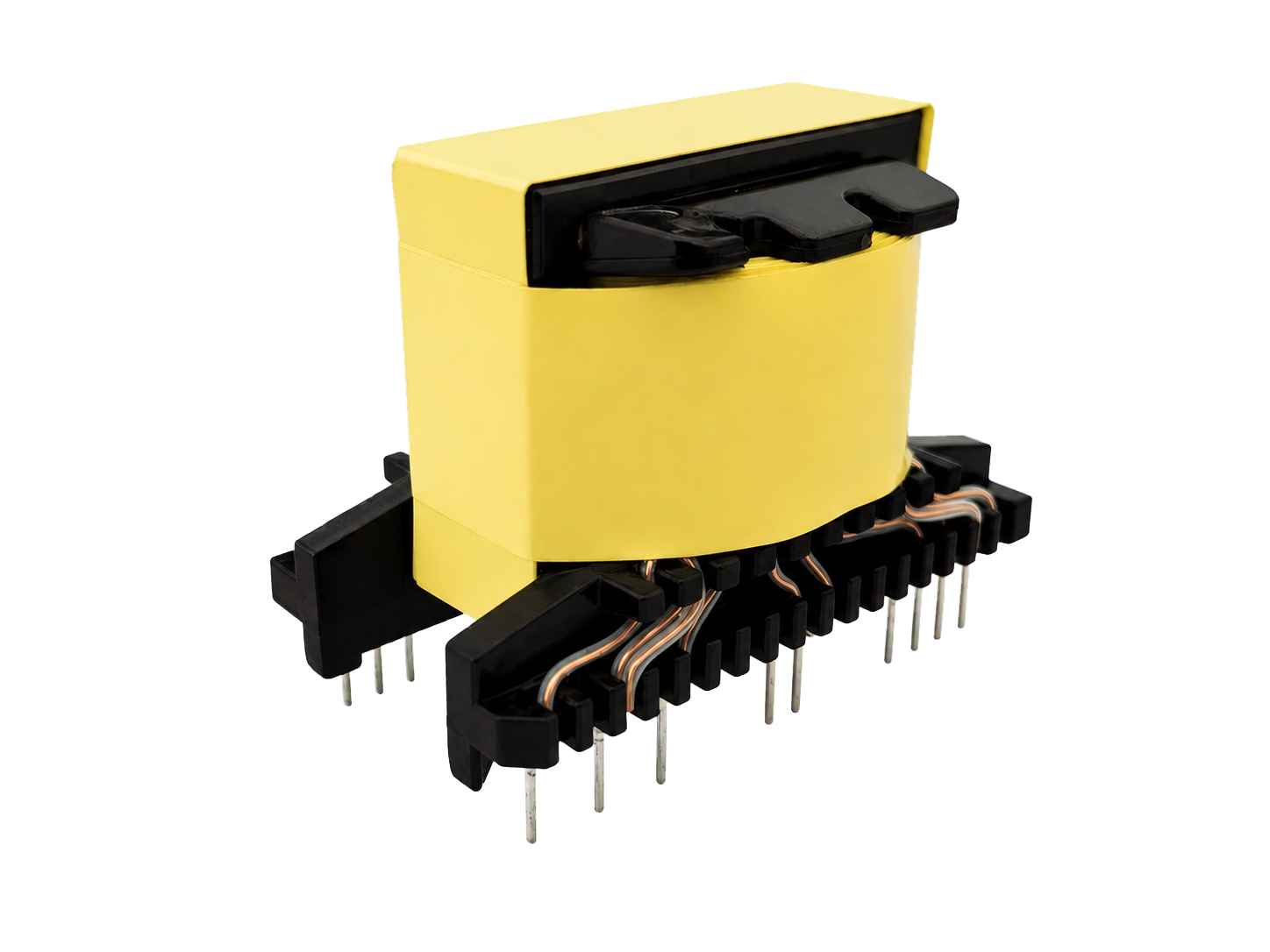

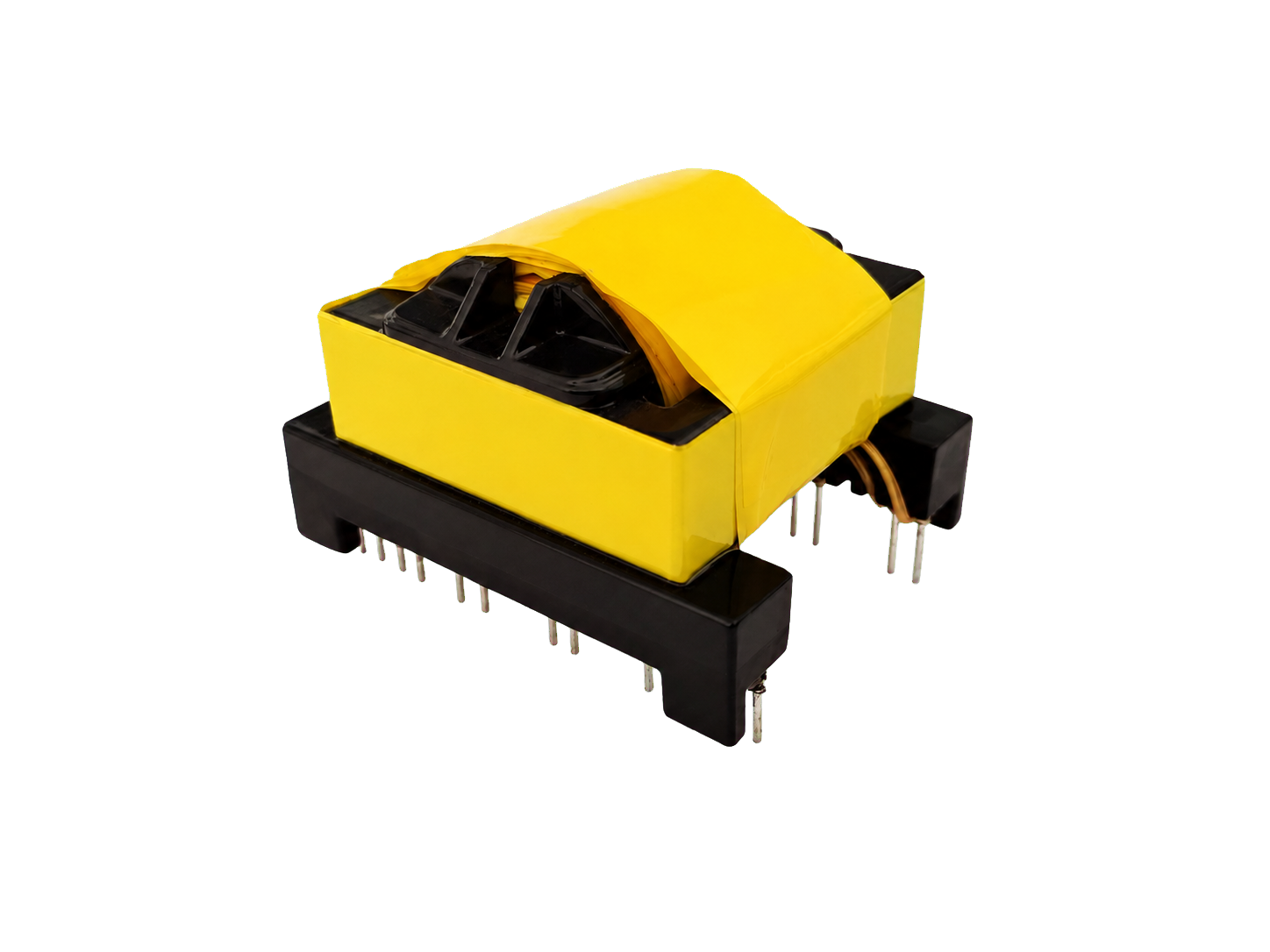

EE Horizontal High-frequency Transformer
Horizontal through-hole design with customizable turns ratio, power, pinout, and insulation class
-
Product Overview
EE-core horizontal multi-pin construction with high-temperature insulation and a high-permeability ferrite core.
-
Technical Specifications
Item Specification Ambient Temperature -40 C to 55 C Insulation Resistance DC 500 V > 100 MOhm Dielectric Strength > 1000 V (1 min) Operating Frequency 20 Hz-200 kHz Thermal Class Class B (+130 C) Note Special specifications can be designed to customer requirements Applications
Phone and laptop adapters, LED drivers, compact industrial power supplies, appliance control boards, and smart power modules.
-
Applications
Phone and laptop adapters, LED drivers, compact industrial power supplies, appliance control boards, and smart power modules.
