Reactor
For smoothing, balancing, ballasting, current limiting, and filtering
-
Product Overview

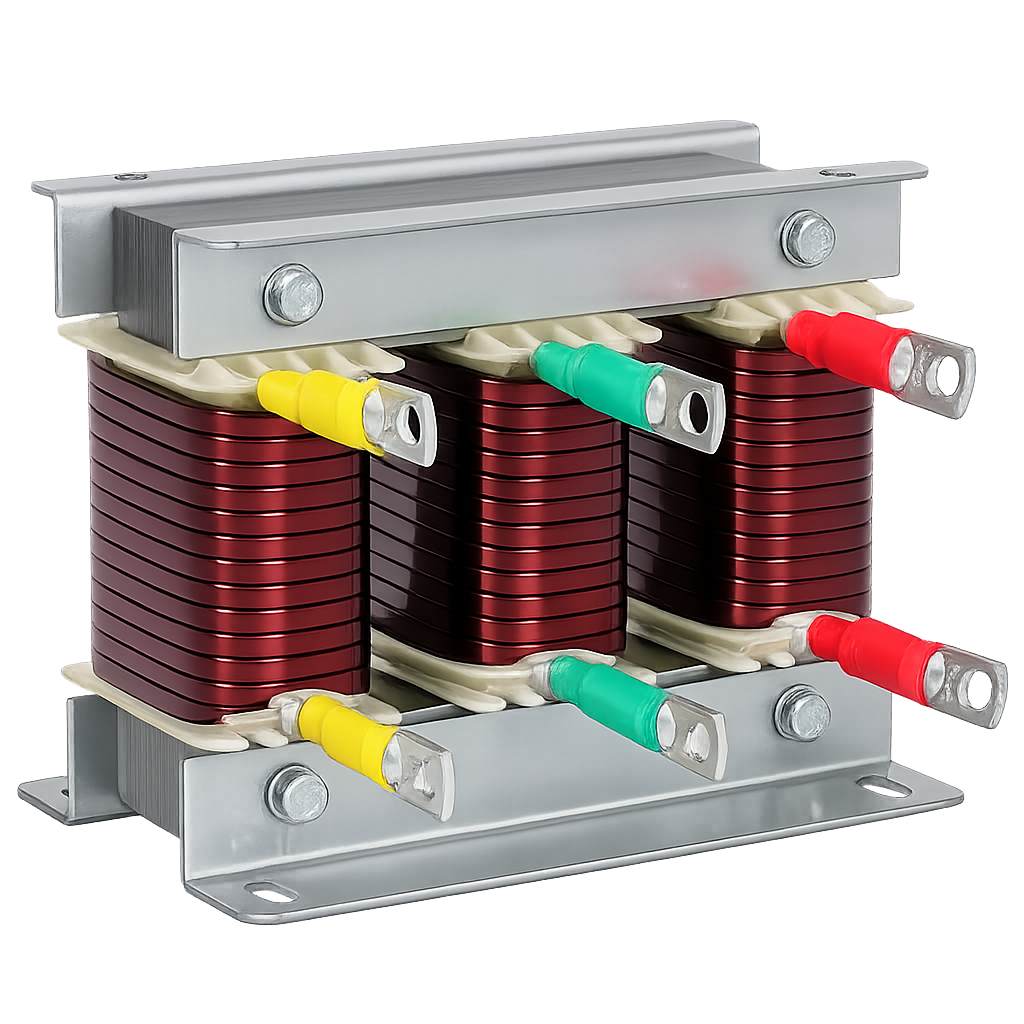

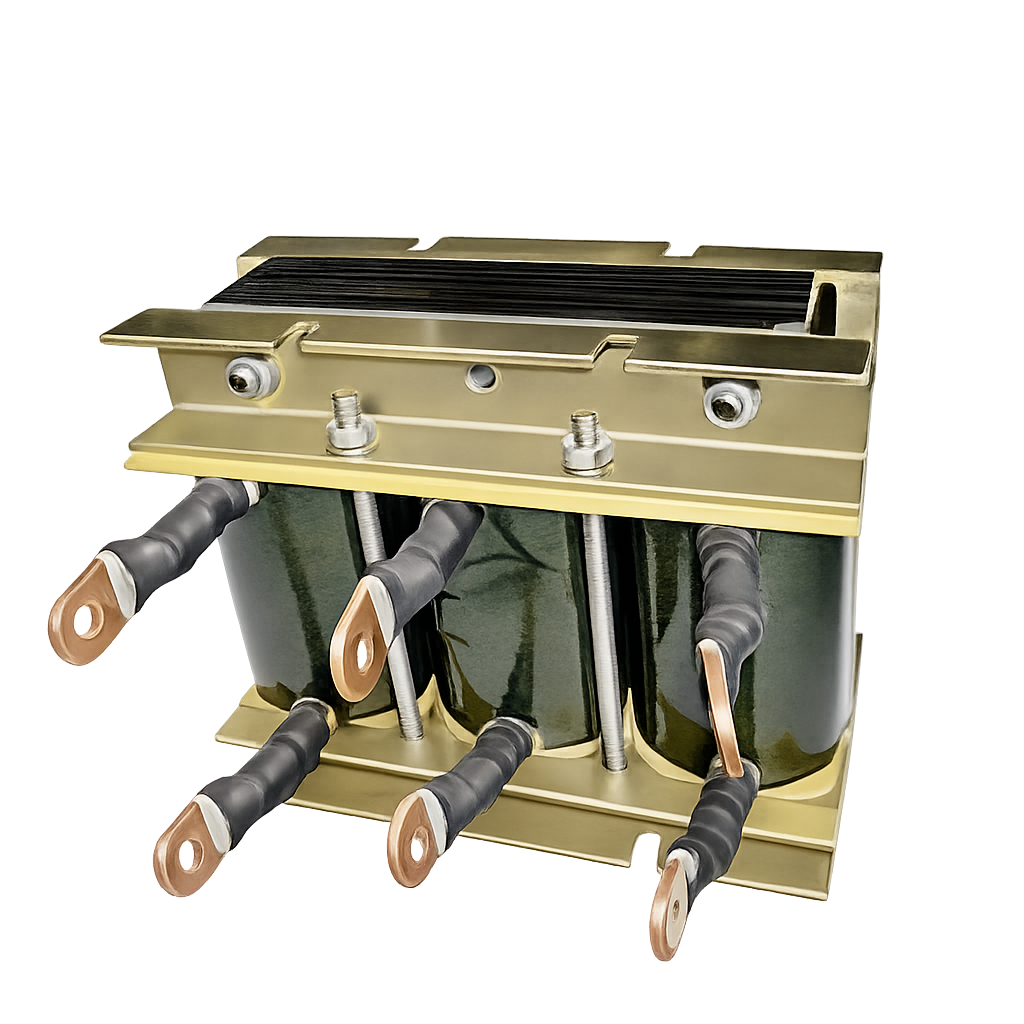

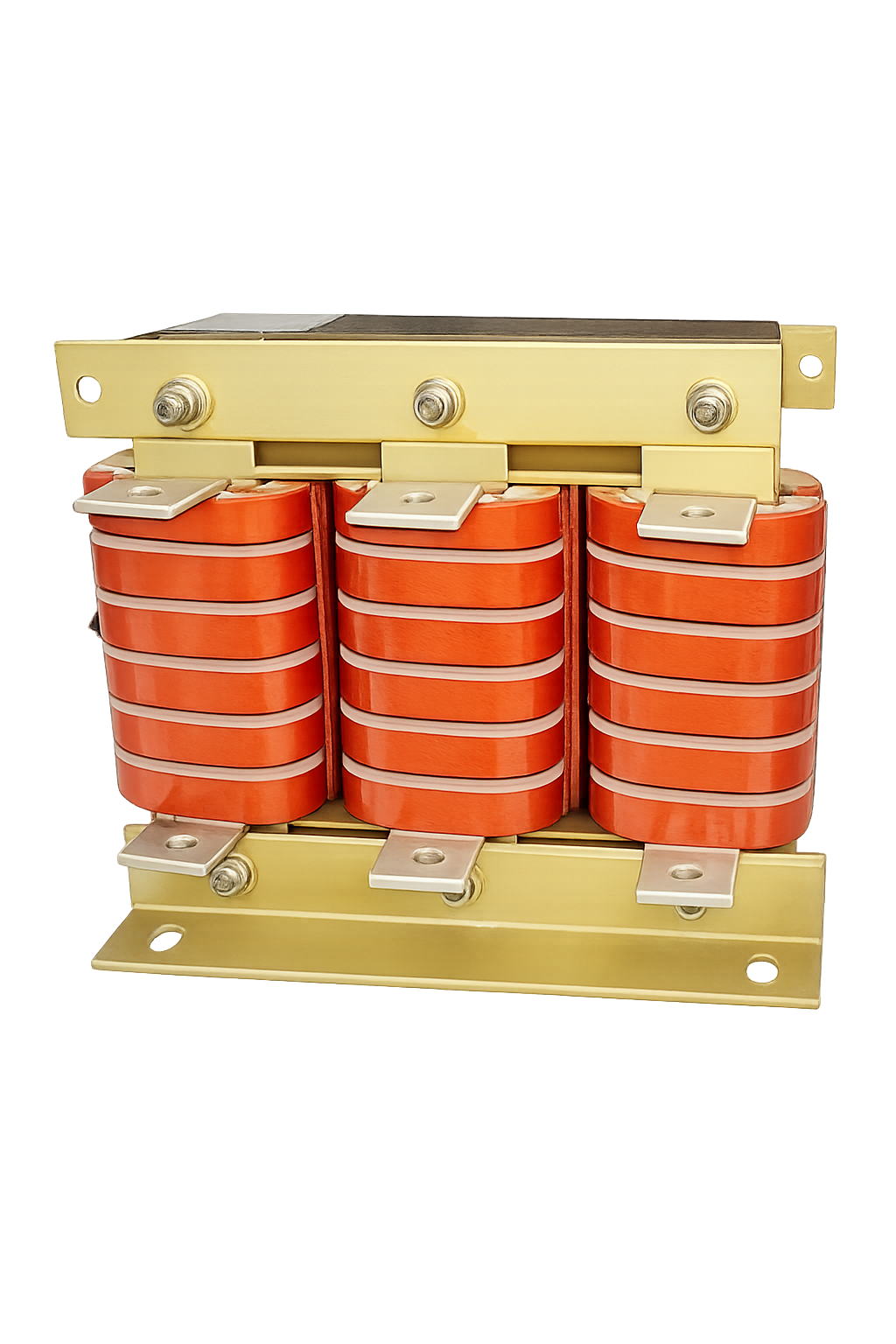

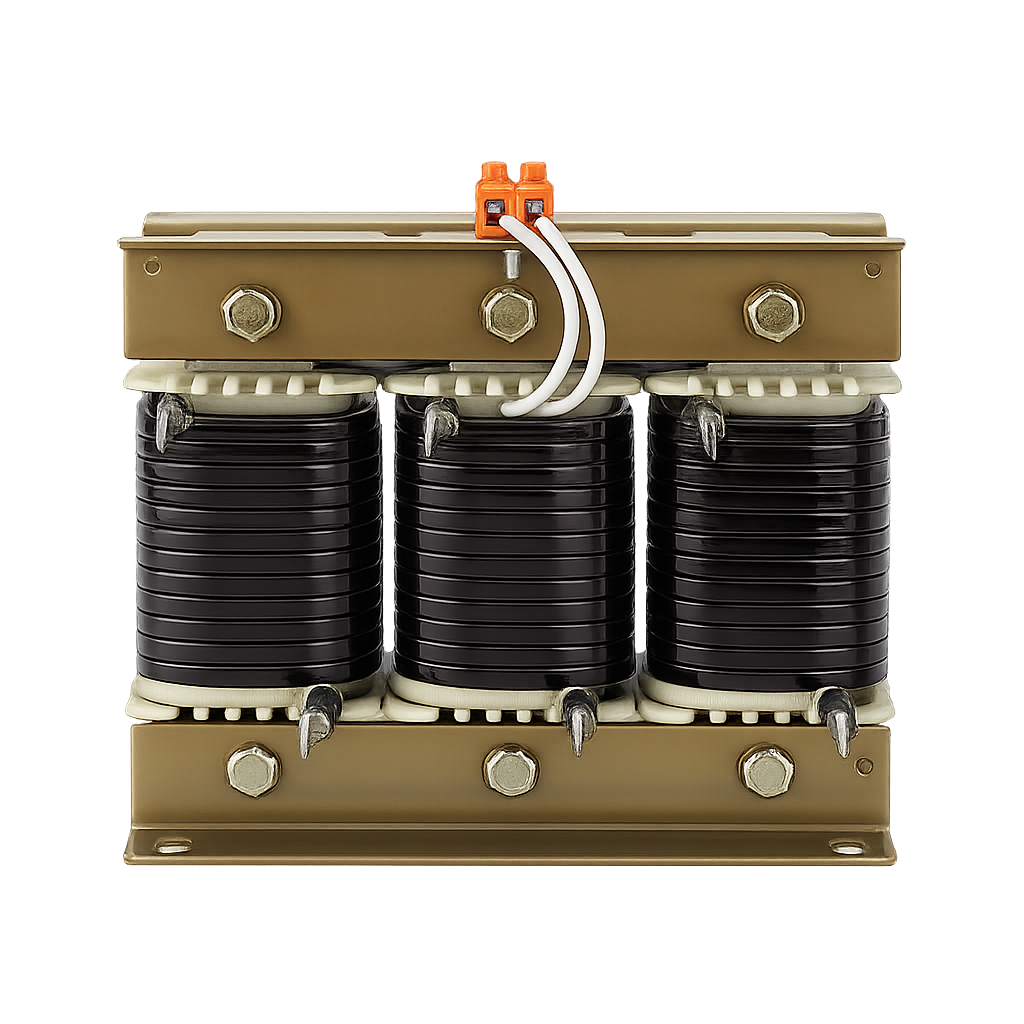

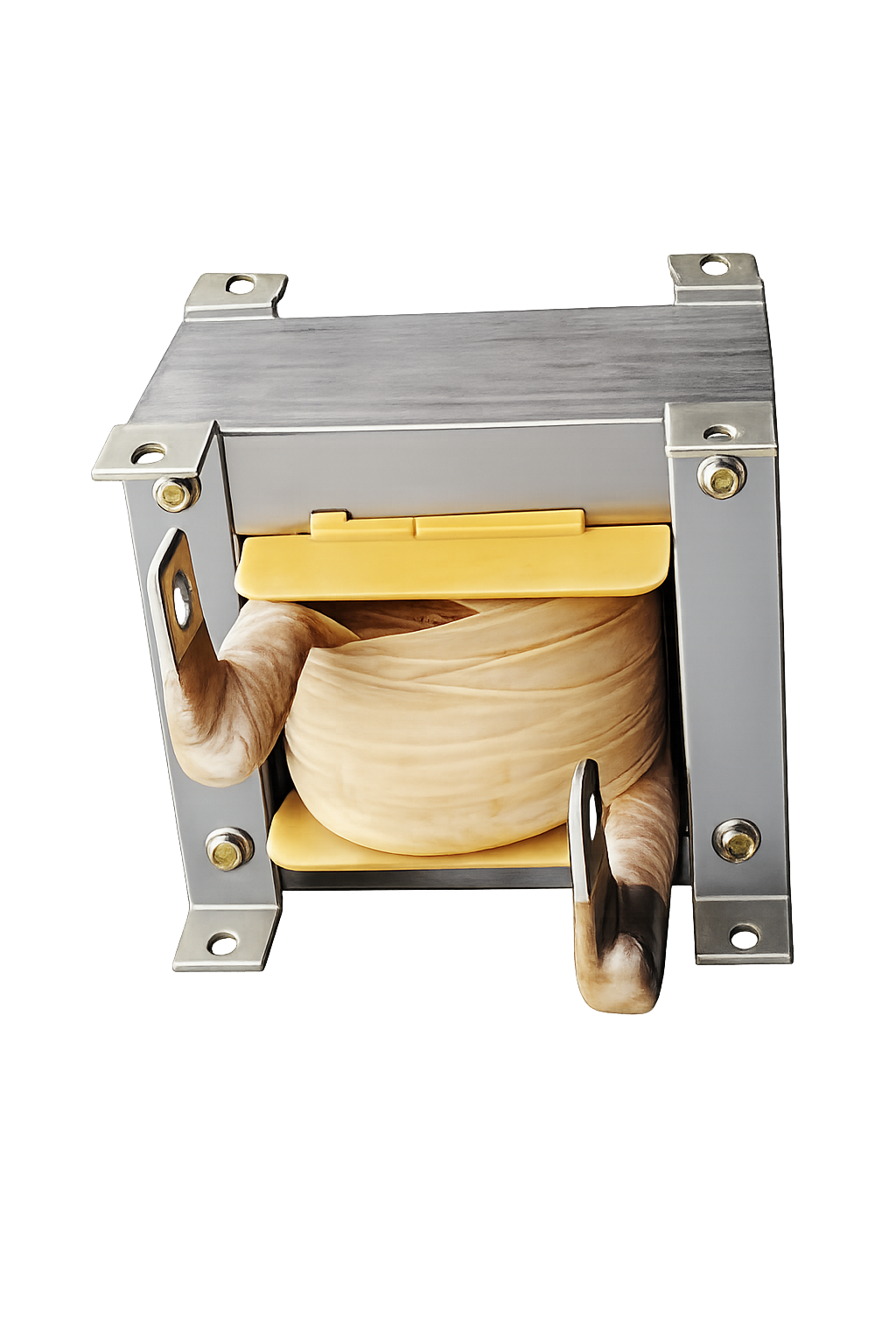

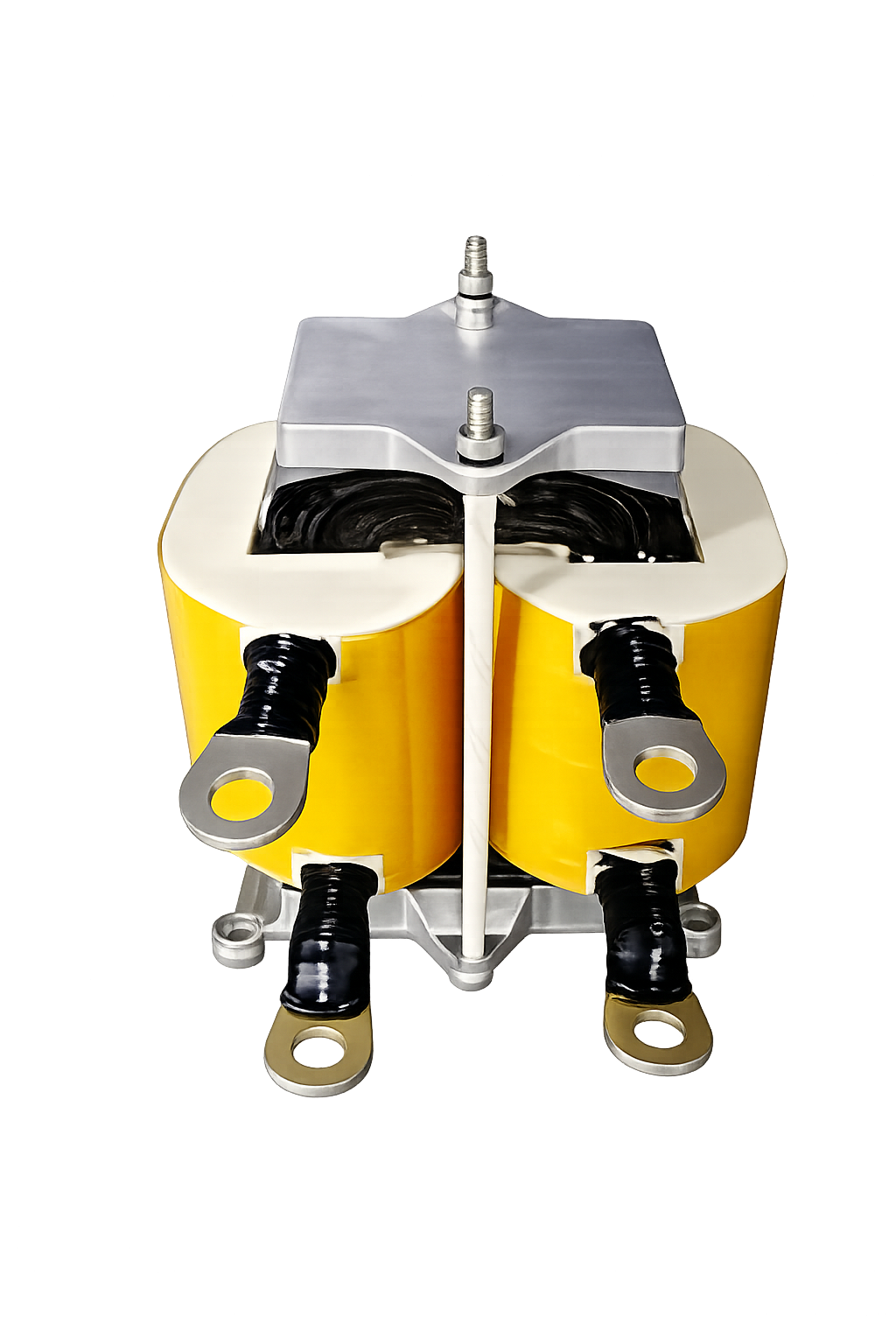

Iron-core inductors, also known as chokes or reactors, smooth rectified DC and reduce ripple voltage.
-
Technical Specifications
Item Specification Ambient Temperature -40 C to 55 C Insulation Resistance DC 500 V > 100 MOhm Dielectric Strength > 2500 V (1 min) Operating Frequency 50-60 Hz Thermal Class Class B (+130 C) Note Special specifications can be designed to customer requirements Applications
Balancing, ballasting, current limiting, converter filtering, high-frequency filters, oscillation circuits, and noise filters.
-
Applications
Balancing, ballasting, current limiting, converter filtering, high-frequency filters, oscillation circuits, and noise filters.
