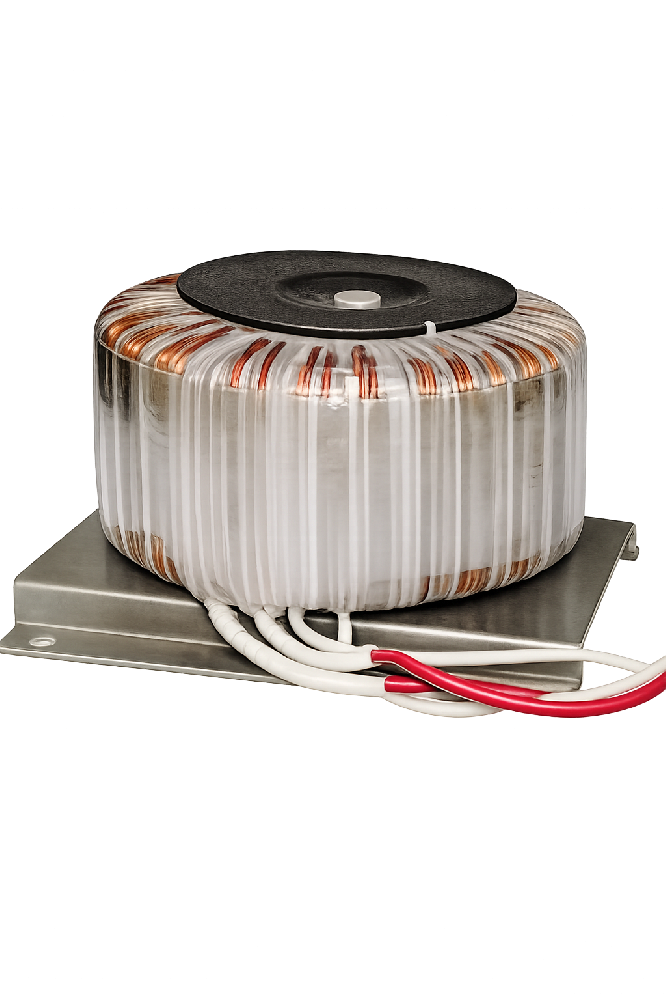

O-core Transformer
Compact, lightweight, and efficient high-permeability core
-
Product Overview
O-core transformers use high-permeability silicon-steel strip with an uncut core cross-section and evenly wound coils.
-
Technical Specifications
Item Specification Ambient Temperature -40 C to 55 C Insulation Resistance DC 500 V > 100 MOhm Dielectric Strength > 2500 V (1 min) Operating Frequency 50-60 Hz Thermal Class Class B (+130 C) Note Special specifications can be designed to customer requirements Applications
Electronic instruments, audiovisual equipment, medical devices, and industrial controls.
-
Applications
Electronic instruments, audiovisual equipment, medical devices, and industrial controls.
