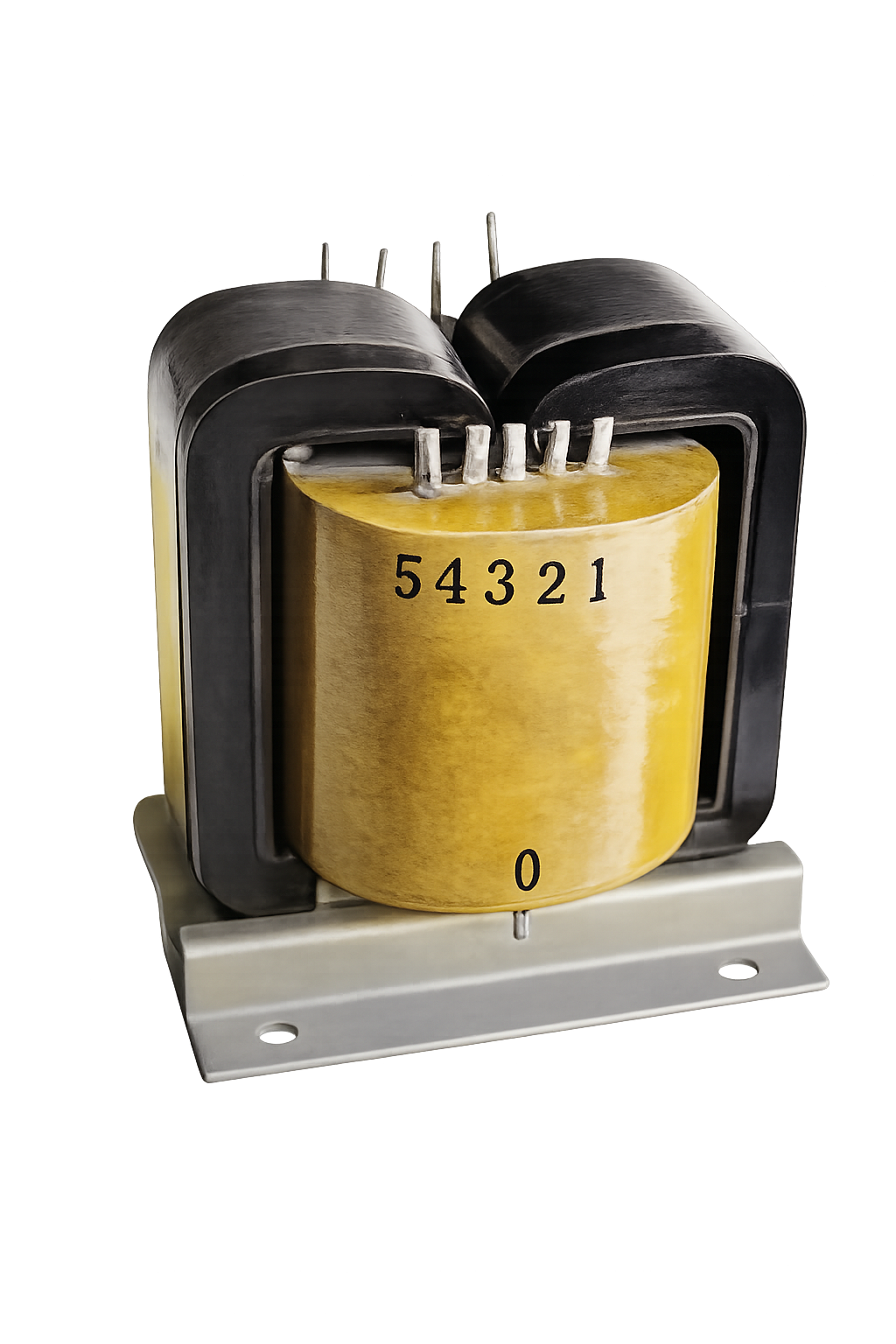

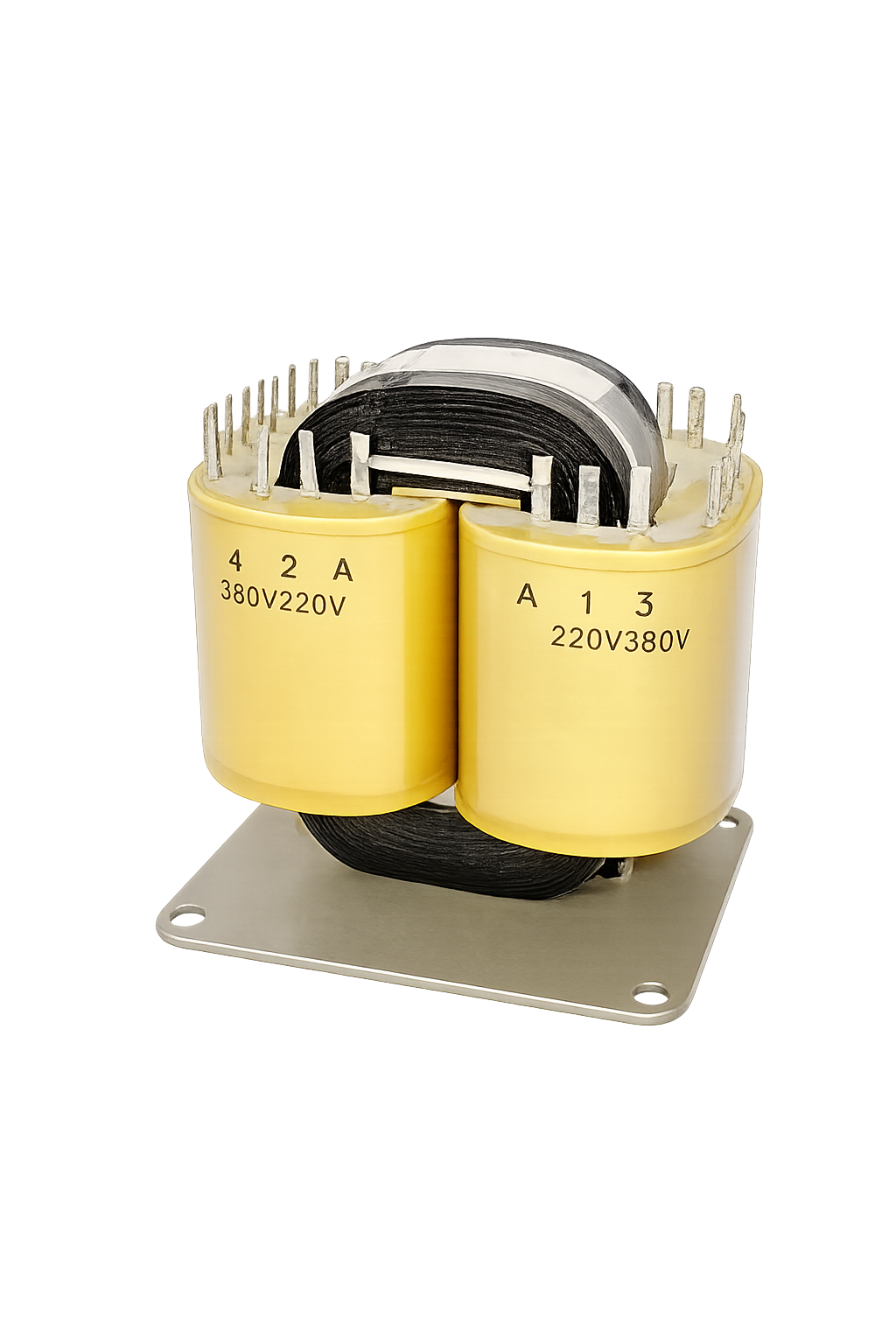

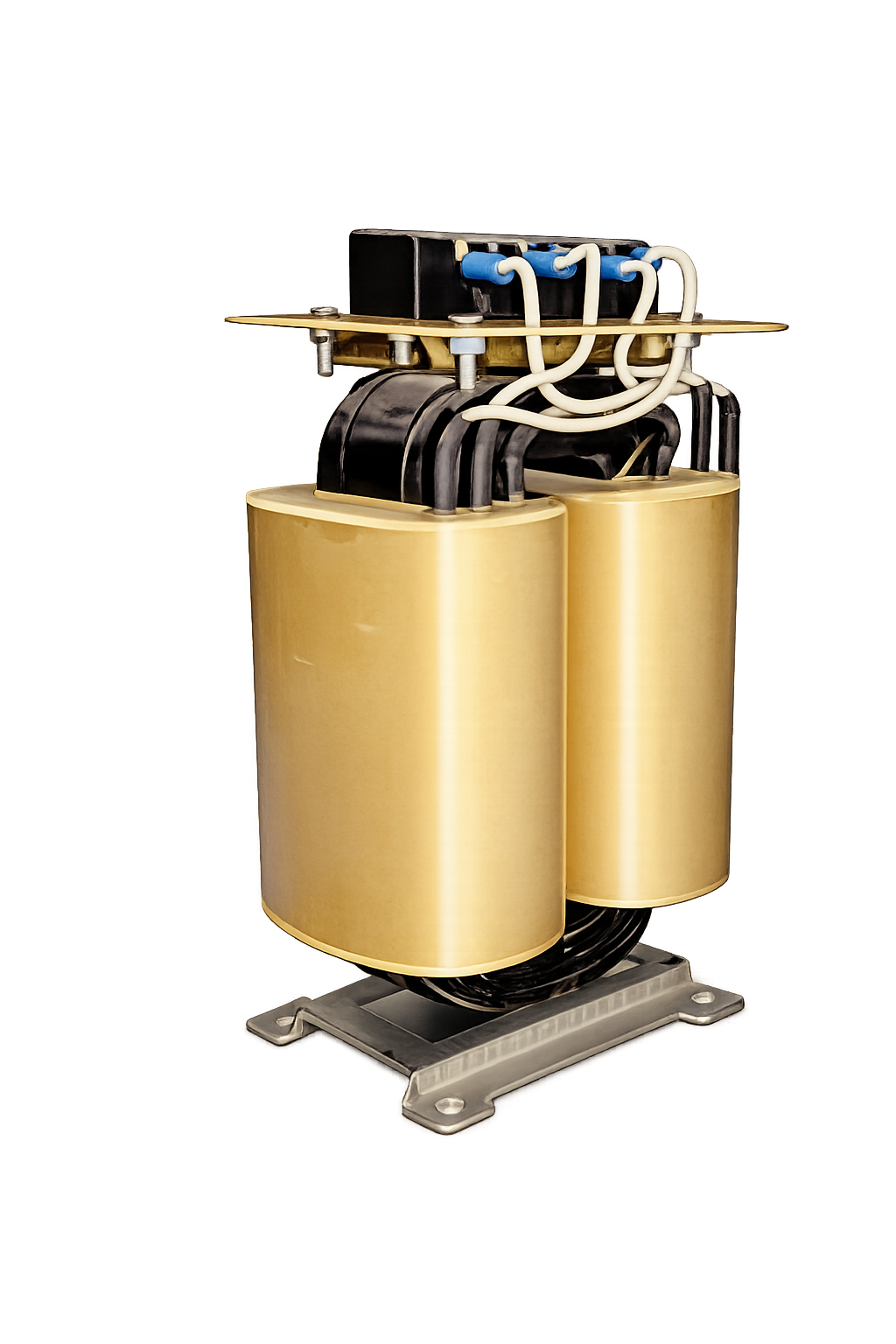

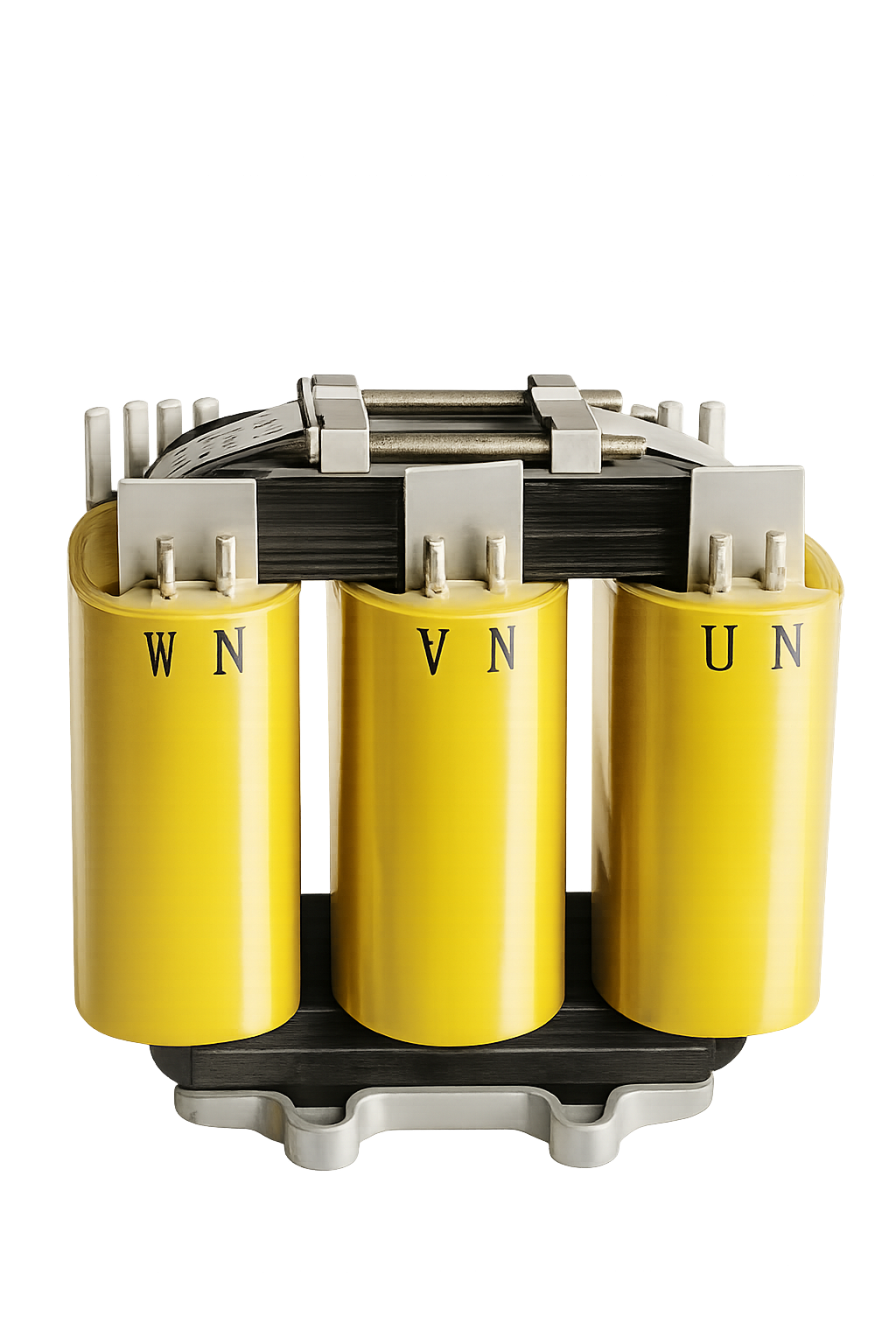

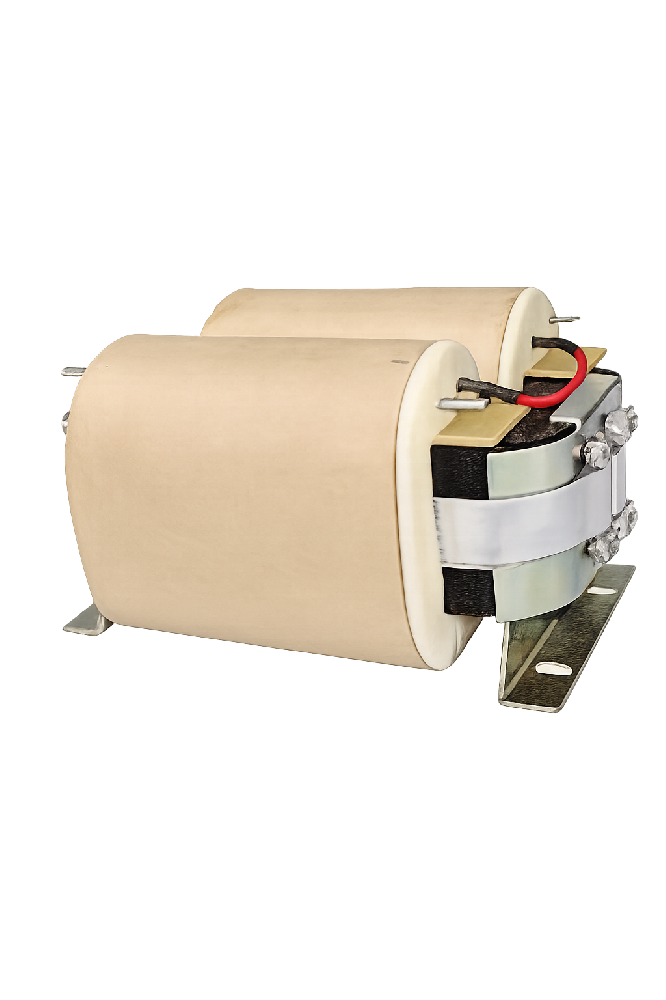

C-core Transformer
Custom specifications and volume production available
-
Product Overview
CD, SD, E, and XCD series use high-quality silicon-steel strip cores, high-strength enameled wire, interlayer insulation, vacuum impregnation, and epoxy encapsulation.
-
Technical Specifications
Item Specification Ambient Temperature -40 C to 55 C Insulation Resistance DC 500 V > 100 MOhm Dielectric Strength > 2500 V (1 min) Operating Frequency 50-60 Hz Thermal Class Class B (+130 C) Note Special specifications can be designed to customer requirements Applications
Electronic instruments, communications, broadcasting, power systems, medical equipment, radar, and marine equipment.
-
Applications
Electronic instruments, communications, broadcasting, power systems, medical equipment, radar, and marine equipment.
